OD 13mm 8P Multi Cable D-SUB to1/4" Metal Stereo Plug*8 DUBP Series
OD 13mm 8P Multi Cable D-SUB to1/4" Metal Stereo Plug*8 DUBP Series

OD 13mm 8P Multi Cable D-SUB to1/4" Metal Stereo Plug*8 DUBP Series

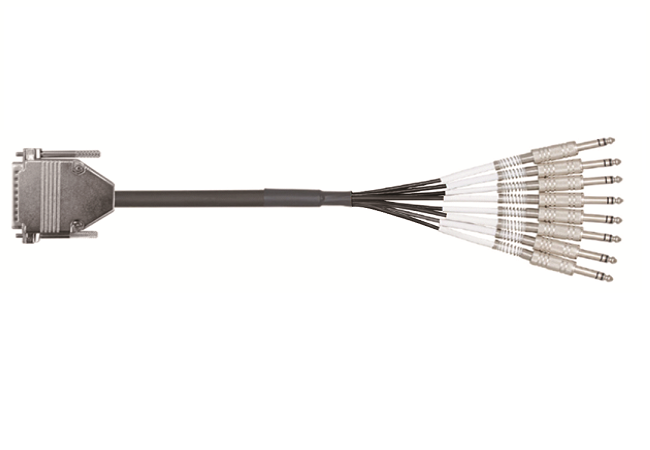

• Professional 8-channel multi D-Sub connecting cable

• OD 13mm 8P multi cable D-SUB – 1/4” Stereo Plug×8
0086-519-83443969 / 0086-13401349149
Inquiry Now

PRODUCT DETAILS



Model

Length

DUBP-6

6FT

DUBP-10

10FT

DUBP-15

15FT

DUBP-20

20FT


1/4” Plug Configuation

l Pin 1: Hot 〔+〕

l Pin 2: Hot 〔-〕

l Pin 3: Ground / Shield

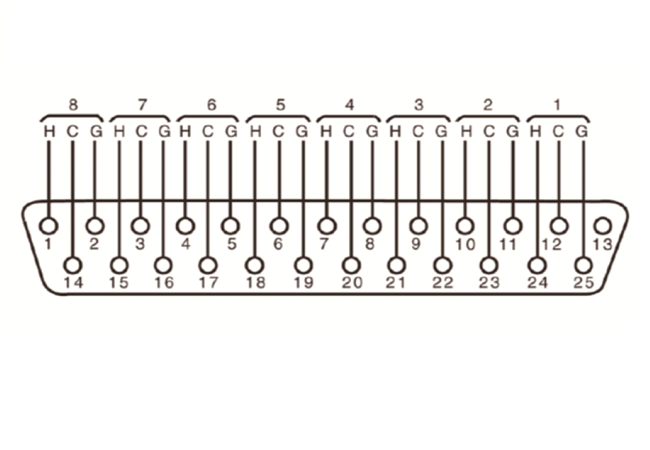

D-SUB 25 PIN 8 CHANNEL CONFIGURATION




PACKAGE
