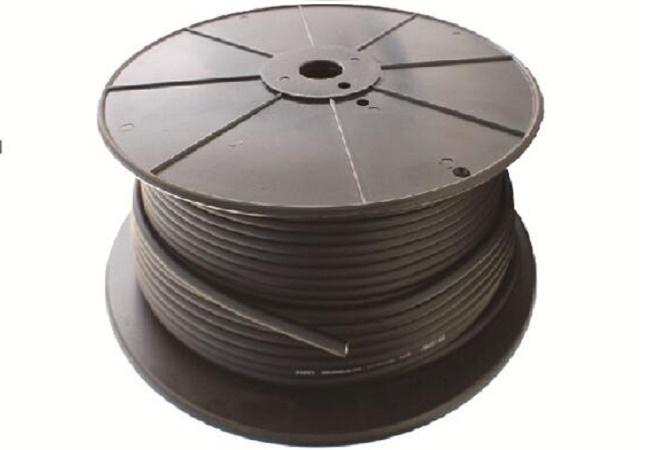

DMX Roll Cable DMX-300
DMX Roll Cable DMX-300
Tinned Copper Braided Shield
PVC Jacket: 7.0mm
Copper Conductor
PVC Jacket: 7.0mm
Copper Conductor
DMX ROLL CABLE
This sturdy digital 110ohm cable is perfectly designed for the transmission of digital AES/EBU audio signals and digital DMX light control signals. The strengths of this cable are parallel control for lighting boards through one cable via power line and DMX signal. Also, this cable is flexible and enormously tread-resistant due to the round jacket made of cotton and viscose. DMX cable is absolutely good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding.
Technical Data:
Jacket diameter | PVC 7.0 mm |
Tinned Copper Conductor | 4 * (0.12*20) |
Conductor insulation | PE |
Shielding | Tinned Copper Braided Shielding 0.1*6*16 and Aluminum foil |
