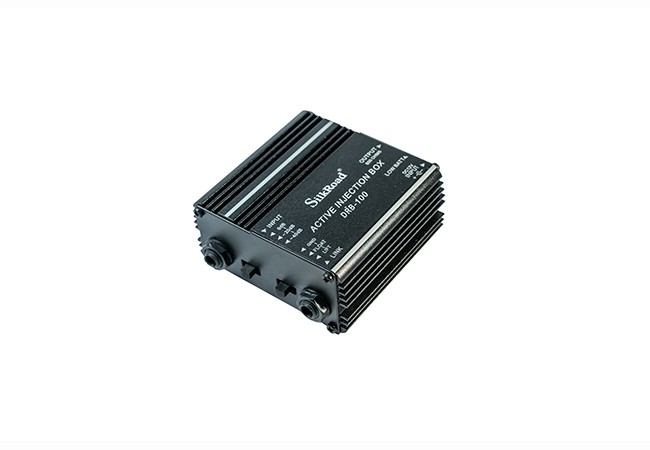

Active Injection Box DRB-100
Active Injection Box DRB-100
Active Injection Box DRB-100
Active Injection Box DRB-100
Active Injection Box DRB-100

Active Injection Box DRB-100

PRODUCT DETAILS

Model No

DRB-100

Freq. Response high to low impedance

20Hz - 20KHz(-3dB)

INPUT IMPEDANCE

1M ohm, Jack+Jack link

OUTPUT IMPEDANCE

600 ohm,Balanced (XLR)

ATTENUATION SWITCH

40dB, -20dB, 0dB

GROUND SWITCH

Connectedl Liftedl Floating

DC INPUT

9~ 12V, 100mA, Negative Center

LOW BATT LED

Indicates at approx 5 volt

DIMENSIONS (WxHxD)

100 x 45 x 100mm

WEIGHT

0.3Kg

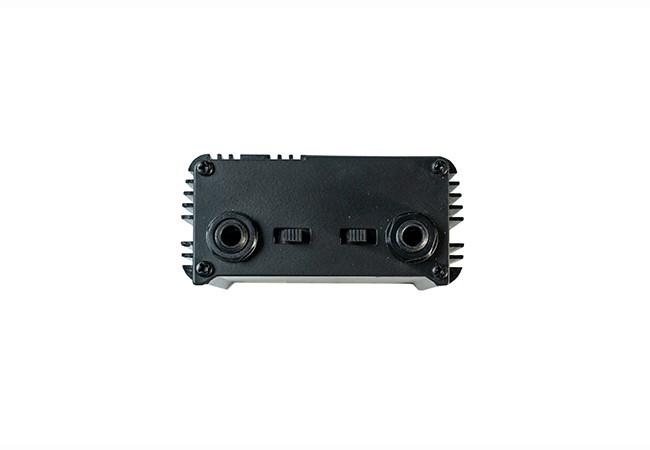

INPUT JACK: Connect the instrument to the jack socketmarked input.This socket switches the battery on and off,so remove the jack plug after use.

LINK JACK:If required,a second lead can be connectedfrom the Link socket to the input of a combo so that themusician can monitor himself on stage or in the studio.

ATTEN SWITCH: A three way attenuator allows accuratedinput level matching: start at 0 dB and decrease to -20 or-40 if distortion occurs.

GROUND SWITCH: The 3 way ground switch is used toeliminate hum loops.Start with the switch in the“GND”position,and if hum occurs due to an earth loop with thecombo or mixer try either of the other two positions untilthe hum disappears.Lift removes the ground connection,and Float allows the respective grouns to be connectedvia a very high resistance.

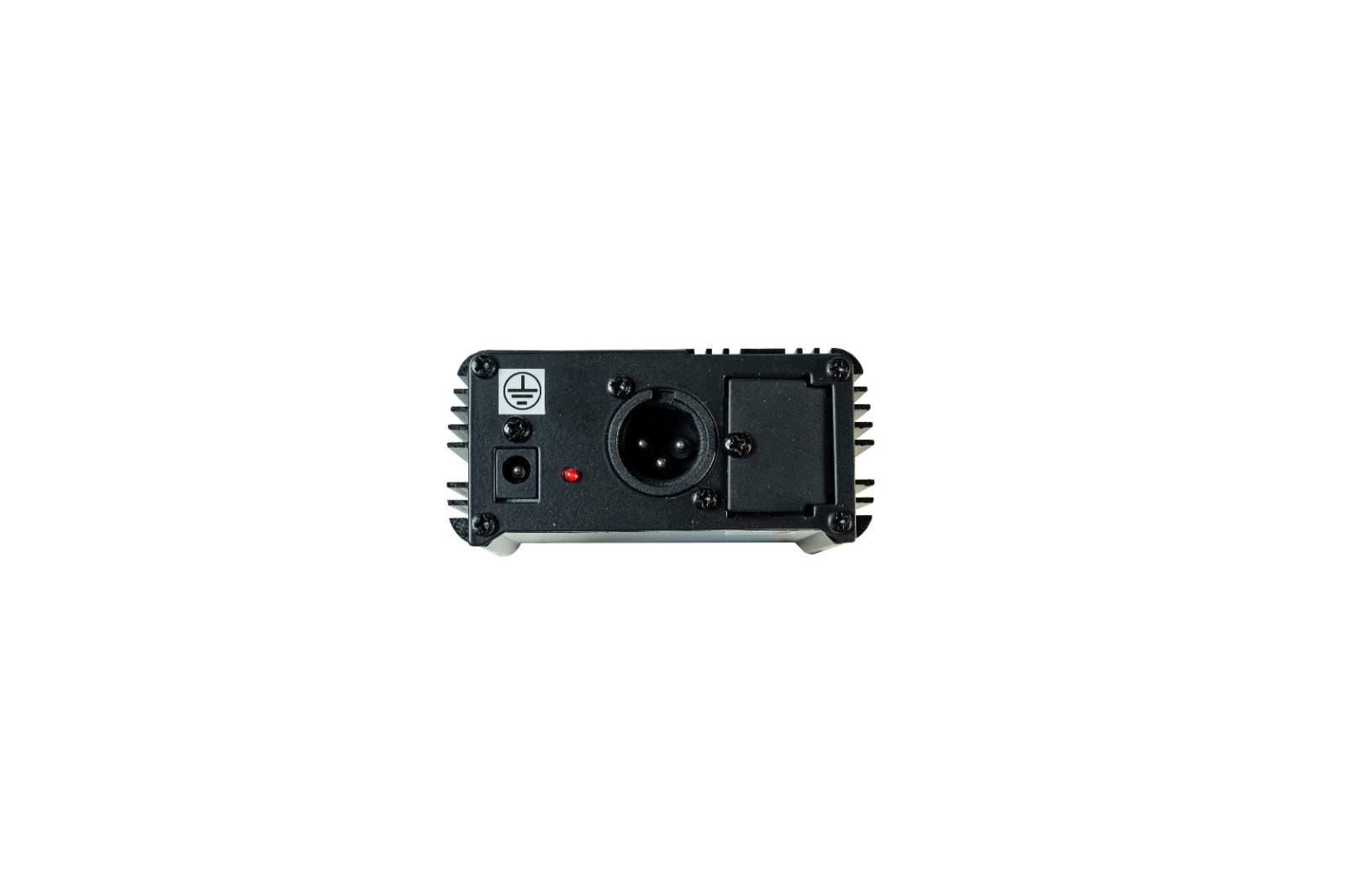

OUTPUT JACK: The balanced XLR output socket(pin 2 hot)should be connected via a balanced 2 core screened ledto the stage box, or input socket of the mixer.

DC JACK: The DC input can also be used to connect anexternal 9~12 volt DC supply.CAUTION:observe the polarity diagram on the lid.

LOW BATTERY LED: If this LED indicator is ON,replace the battery.
